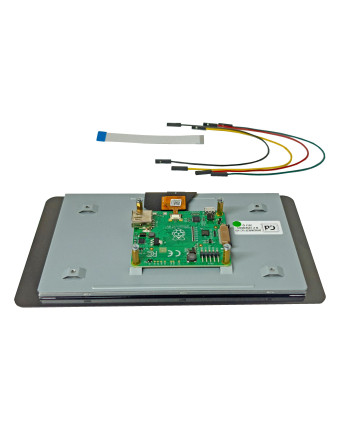

K-09.18 Touch Screen for Raspberry

Reference : K-09.07

It has input for : USB and mini USB

Input : DC 5V - 2.1A

Output : DC 5V - 2.1A

Reference: UNO R3

Microcontroller: ATmega328

Operational Voltage: 5v

External power (recommended): 7-12v

External power (limits): 5-20v

Digital I / O pins: 14 (of which 6 with PWN function)

Analog pins (input): 6

DC Current I / O Pin: 40 mA

DC Current 3.3V Pin: 50 mA

Flash Memory: 32 KB (of which 0.5 KB are occupied by the bootloader)

SRAM: 2 KB

EEPROM: 1 KB

Speed: 16 MHz

Category : Nanocomputer.

Brand : Raspberry Pi.

Connection : HDMI, Micro SD, DPI, ISC, USB 2.0, GPIO, USB 3.0.

Storage type : Micro-SD.

Storage capacity : 4 GB, 16 GB.

Central Processing Unit (CPU) : ARM v8, 64-bit quad-core Cortex-A72 SoC at 1.5 GHz, Broadcom BCM2711.

USB 2.0 port(s) : x 2.

USB 3.0 port(s) : x 2.

GPIO / MPI DSI / MPI CSI port(s) : x1 MIPI DPI.

Power : 5V DC via GPIO, 5V DC via USB-C, PoE compatible (requires PoE HAT not included).

MicroSD port(s) : Yes.

Micro-HDMI Port(s): x2.

Product Type: Kit.

Reference : K-09.19

Sony IMX708 image sensor with integrated IR filter.

11.9 MP native resolution.

Motorized autofocus.

Phase detection autofocus (PDAF) for fast focusing.

Angle: standard (75°) or wide angle (120°).

7.4 mm sensor diagonal.

Pixel size: 1.4 μm × 1.4 μm.

Photo resolution: 4608 × 2592 pixels.

Video modes: 1080p50, 720p100, 480p120.

Output: RAW10.

High signal-to-noise ratio (SNR).

Integrated 2D dynamic pixel defect correction (DPC).

Sensor with I2C-controlled focus.

Reference: EM16

Features: Works with fruits

Power: via USB: 5VDC

Mini-B USB jack on-board

uMain Control IC: ATMEGA32U4u MICROPROCESSOR

Measures: 48 x 94 x 10.8 mm

English:Reference : K-09.03

- Computer or PC running Windows 7 or later, OS X 10.6 or later, ChromeOS (Chromebook), Linux (Raspberry Pi), Android or iOS .

- USB 2A male to “micro B” cable to connect your computer to the BBC micro:bit. This is the same cable normally used to connect a smartphone to a computer.

- Internet access .

- Operating frequency : 2402.0 to 2480.0 Mhz.

- Output power < 4dBm.

Power :

- When the BBC micro:bit is not connected to your computer via the USB cable, you will need two AAA batteries.

Reference : K-09.08

It has input for : USB and mini USB

Input : DC 5V - 2.1A

Output : DC 5V - 2.1A

English:Reference : K-09.02

Display : 3 ½ digit LCD with a maximum reading of 19999.

LCD screen size : 67 x 42 mm.

LCD screen angle adjustment : Yes.

Polarity indication : "_" is automatically displayed.

Overrange indication : Only "1" is displayed.

Low battery indication : Displayed.

Range selection : Manual.

Operating temperature : 0ºC to 40ºC, less than 80% RH.

Storage temperature : -10ºC to 50ºC, less than 85% RH.

Battery type : 9 V battery IEC 6F22, NEDA 1604.

Dimensions : 190 x 90 x 33 mm.

Weight : 227 gr.
